When does fusing hand-crafted knowledge with learned representations pay?

A cost-normalized benchmark of stacking, substitution and interference

Paper Paper GitHub Code & harness Results Result tables & run records

TL;DR

A free, hand-crafted spectral prior is worth more to a small transformer than two rounds of self-supervised pre-training. To a convolutional network that already has enough data it is worth nothing at all. And at your own label budget, a linear evaluation of frozen features predicts the end-to-end gain to within 0.17 points.

We ran the comparison the field keeps making informally: every intervention under one frozen recipe, on byte-identical images, with its compute cost declared. The gain then decomposes as Δ = G + readout(base): what a source does to the features, plus what the classifier can cash in. The sign of that second term is correct on 86.4% of the cells that can test it. Sources supplying the same currency substitute; sources supplying different ones can stack; fusing a strong shaping prior into an already-informed initialization interferes in proportion to what that initialization was worth, at full auxiliary strength and not below it. A rule built on that reading separates the three outcomes in hindsight but, run prospectively on nine untrained pairs, called one, and we report that as a result.

Abstract

Fusing prior knowledge with data-driven learning is attractive where data is scarce, yet no controlled account says when it helps, is redundant, or harms. We benchmark one fixed hand-crafted knowledge source, a pinned bank of Gabor targets injected only during training at ~2% overhead, against data-driven alternatives (SimCLR, SimSiam, DINO and masked-reconstruction pre-training, ImageNet transfer, augmentation, learned teachers) under one frozen recipe with fixed subsets: 13 datasets, 9 backbones, 150 to 1.28M images, 32–224 px, 2.5M–86M parameters (3,077 classification configurations over 9,471 runs, plus segmentation and detection transplants).

Every pairwise combination we measure at training time follows one rule (decision-level fusion differs). Different-currency sources can stack: the prior composes with DeiT augmentation on attention backbones and is worth +26 points to ViT-B/16 at 224 px, +6.7 at twice that budget. Same-currency sources substitute: against effective self-supervised pre-training the combination never usefully exceeds the better single source. Fusing at full strength into an already-informed initialization interferes in proportion to what it carries: ImageNet transfer, −15 to −17 points, removed by a weaker auxiliary weight. Each source's currency is measurable on frozen features from that source alone, which separates the three outcomes but does not predict them: as a procedure on untrained pairs it calls one of nine. At a practitioner's own label budget the frozen-feature gain predicts the end-to-end gain to within 0.17 points across 30 cells and seven datasets; the underlying decomposition, Δ = G + readout(base), holds in sign on 86.4% of testable cells and called an unseen backbone family's feature gain in advance.

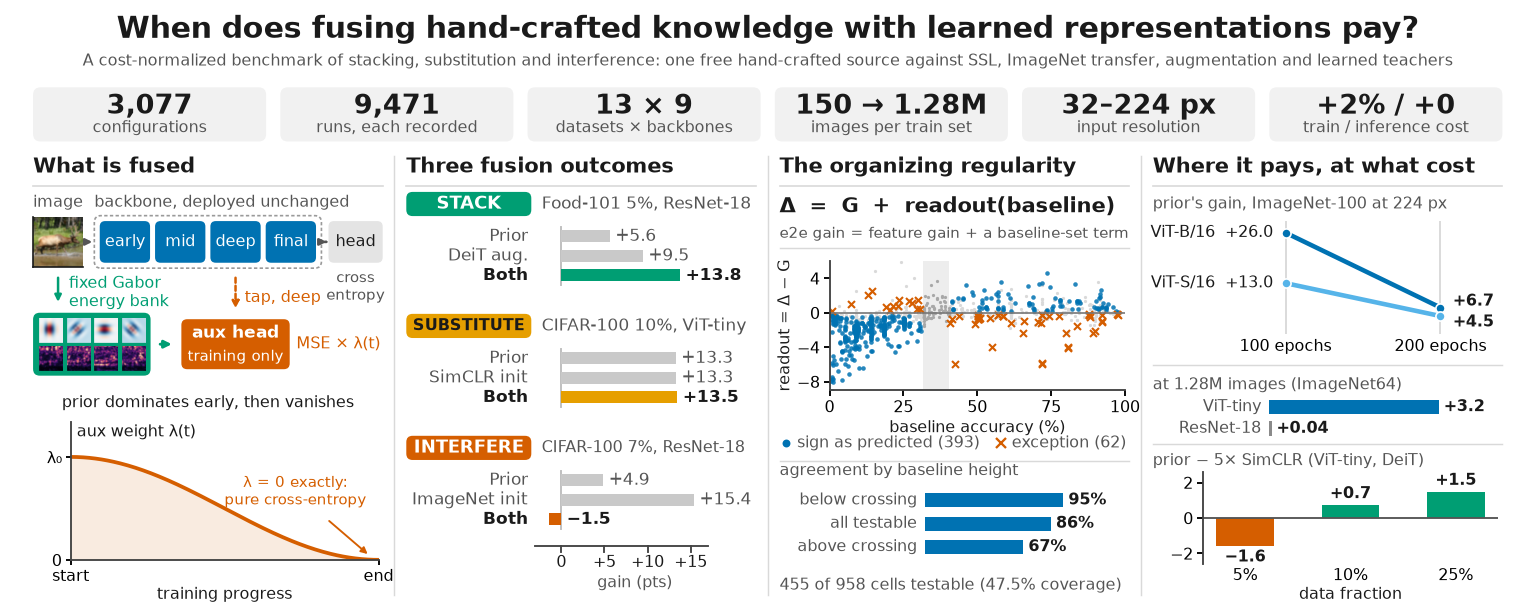

Overview: the fusion, the law, and when it pays
The benchmark at a glance. Left: what is fused. A real image feeds the backbone stages (deployed unchanged) and a fixed bank of Gabor energy targets; the deep stage is tapped into an auxiliary head trained only, with a weight λ that decays to exactly zero, so inference costs nothing extra. Then the three fusion outcomes on one measured cell each, the decomposition Δ = G + readout(base) with its audit, and where the prior pays at what comparator cost. Every number is read from the released tables.

The three outcomes

Combining two sources of knowledge produces one of three outcomes, and which one you get is not predictable from the sources' family names. The same prior is redundant with effective self-supervision and complementary with augmentation. A cheap measurement on frozen features, taken on each source alone, separates the three after the fact; a rule built on it and run prospectively on nine untrained pairs called one, so the taxonomy is something the measurement organizes, not something it predicts.

Stack: different currencies

The prior injects oriented-energy structure; heavy augmentation teaches invariance to nuisance transforms. Different currencies, so they can compound. On ViT-tiny at 10% of CIFAR-100, the prior adds +13.3 under the plain recipe and +21.0 on top of DeiT augmentation. Necessary, not sufficient: on two convolutional populations outside the selection set the same pairing stacks at one cell of six.

Substitute: same currency

The prior and contrastive pre-training fill the same feature deficit, so the combination never usefully exceeds the better single source (at most about a point above it, never near additivity). Measured on the feature side: whichever source has the larger frozen-feature gain is the one that wins end-to-end, at 6 cells out of 6 across two datasets.

Interference: fusing into an already-informed initialization

Injecting the prior on top of ImageNet weights is destructive everywhere, and the damage is proportional to what the initialization was contributing and to how hard the prior shapes: −15 to −17 points on photographic data at full auxiliary strength (ten seeds per arm), vanishing below it, and statistically zero on histopathology where those weights were worth little to begin with. Probing confirms the loss is feature-side, not a classifier failure.

The rule

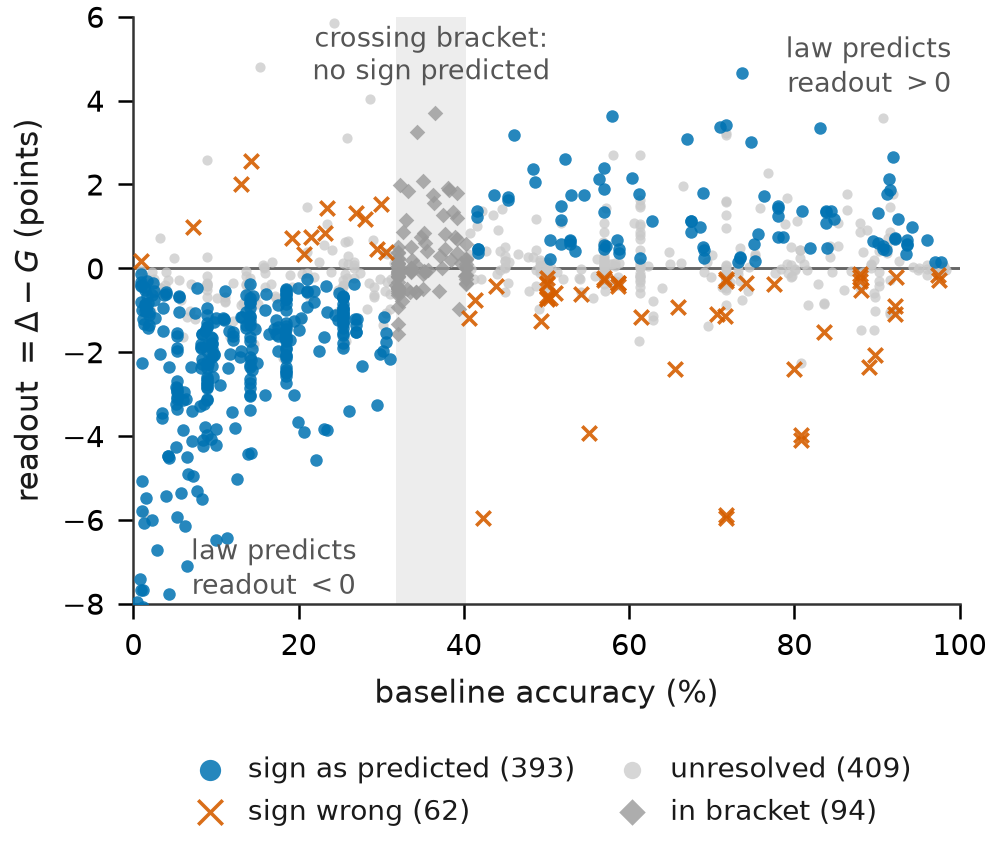

Readout residual against baseline accuracy
Δ = G + readout(base). The accuracy gain of an intervention decomposes into what it does to the features (G, measured by an identical linear evaluation on frozen representations) and a readout term set by how well the baseline already performs. The sign is correct on 86.4% of the cells where it is statistically resolvable (393 of 455, and 94.9% on the scarce-data flank). It is informative on the scarce-data flank, where the readout term is large and negative, and close to uninformative once that term has decayed to nothing, and we say so rather than reporting a single headline rate.
Registered in advance. Each experimental wave was launched with numeric prediction bands and explicit falsifiers recorded before any result existed, and outcomes are reported against those bands including the misses. In one case the rule was used to predict an unseen backbone family's feature gain from its baseline accuracies alone; all four cells landed inside the band. In others our predictions were wrong, and the paper scores them that way.

Where the gain lives

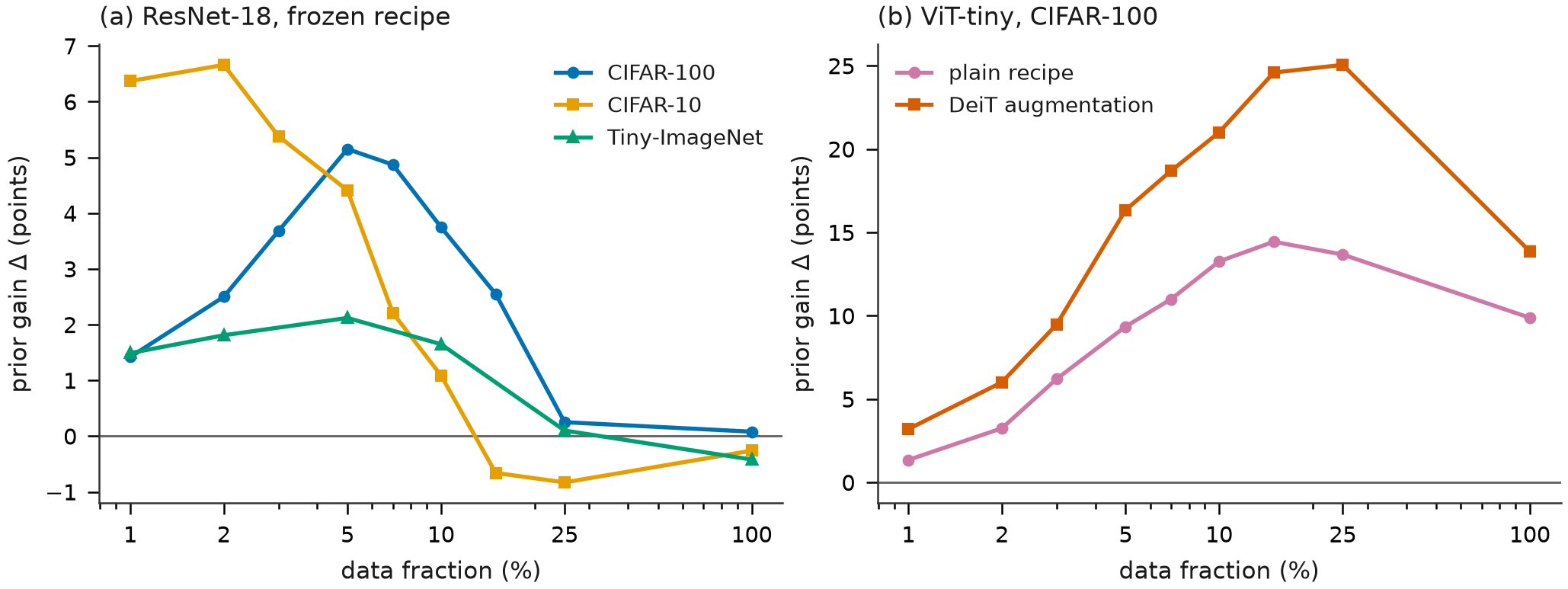

Gain envelopes across data fractions
Every effect moves with the data regime. The gain rises, peaks and decays to zero as data becomes sufficient. That is why the benchmark measures full envelopes rather than one or two fractions. Reading a two-point grid was the single most common way we misled ourselves, and the paper documents each instance.

Selected results

Attention at small scale is where the prior matters most

CIFAR-100, ViT-tinyBaseline + PriorΔ
Plain recipe, 10%16.4729.74+13.26
DeiT augmentation, 10%20.2841.29+21.00
DeiT augmentation, 100%61.3975.25+13.86
ViT-S/16 @224 px, ImageNet-100, 100 ep65.3978.39+13.00
ViT-B/16 @224 px, ImageNet-100, 100 ep43.3369.34+26.01
ViT-S/16, ImageNet-100, 200 ep79.4783.99+4.52
ViT-B/16, ImageNet-100, 200 ep75.3182.02+6.71

The deficit grows with model scale rather than shrinking, at both budgets: +6.71 against +4.52 at 200 epochs, where both models are trained. It persists at 1.28M images where every ResNet is neutral (+0.04). Masked reconstruction (MAE-style, 2× compute), added on ViT-tiny, lands level with SimCLR and the prior under the plain recipe (20.5 / 29.5 / 42.7 at 5 / 10 / 25%) and 6.8 to 7.6 points below the prior under DeiT augmentation; its feature gains sit below the prior's, so it reads as more of the same currency, not a new one.

Cost normalization, and what happens when the comparator gets more

CIFAR-100, ResNet-18Cost 5%10%25%
Prior (this work)1.02× +5.15+3.75+0.16
SimSiam, 200 pre-epochs2.00× +0.13+0.61−0.03
SimCLR, 200 pre-epochs2.00× +9.05+8.76+2.81
SimCLR, 800 pre-epochs5.00× +14.38+10.92+2.77

Reported plainly: on convolutional backbones, once you can afford 5× compute, contrastive pre-training beats the free prior at every fraction we measured. The prior's convolutional case is one of cost, not accuracy. On attention backbones under a modern recipe the ordering differs, and the paper states it with both its budget and its data regime attached.

Does any of it hold off classification?

Every number above is top-1 accuracy, so the prior was transplanted to two other tasks. Both headline results are negative, which is why they are worth reporting.

Semantic segmentation. Six populations (PASCAL VOC, Cityscapes, FoodSeg103, ADE20K, Pascal-Context, and a Swin-T arm), 216 runs at the same 200-epoch budget the classification recipe uses. The envelope keeps its shape and its neutrality at full data, but a dense target supervising a dense task, the venue most favourable to this prior, pays less than classification does at matched supervision density: +0.39 mIoU at about five images per class, against a universal ≈ +1.5 floor on classification. Target–task alignment is not where the value comes from.
Object detection. On the same VOC images this is a null end to end and under the frozen-feature probe (G(fg_acc) = −0.16 at 1%, against a pre-registered falsifier of +1.5), so the null is the prior rather than a weak head. A +0.84 AP50 gain was withdrawn after it was traced to a single seed whose box-regression branch had collapsed.

Whatever the prior supplies is cashed fully by a whole-image classifier, partly by a per-pixel one, and not at all by a coordinate regressor.

A procedure for deciding whether to fuse, and its prospective test

If the taxonomy had practical content beyond description, it would be that the outcome can be estimated before the combined system is built, from measurements of each source alone. We stated that as a hypothesized procedure, registered its calls on thirteen pairs whose combinations had never been trained, and only then trained them. The procedure reads each source's frozen-feature gain, returns interfere for a mature initialization, n/a when a source supplies nothing, substitute when the two gains are close and both arms fix the same cells, and stack otherwise.

It called one of nine. On the nine pairs whose outcome resolved, the rule was right once, on validation and on test alike, so the predictive claim is withdrawn and the paper reports the failure as a result. The diagnosis is specific: the rule reads agreement in the magnitude of two feature gains as "same currency", which conflates same-currency-in-different-amounts with different-in-kind, and on held-out pairs that proxy orders the outcomes backwards. A strength-asymmetry rule fitted on those pairs fails on the next family over (one of six), because DeiT augmentation contributes almost no feature gain on its own and multiplies what it is paired with: an amplifier, which no comparison of two single-arm gains can describe. Three rules of the same shape fail out of sample, and that is the finding.

What does predict: at a practitioner's own label budget, a linear evaluation of frozen features predicts the end-to-end gain to within 0.17 points on average across 30 cells, 8 datasets and baselines from 5 to 94%. Measure G at your budget and you know Δ without training the cell. The full-label sign law is the corollary of that measurement, and the paper names its mechanism: a label-rich probe sees more than a label-starved classifier can cash in.

Two sensors, and when a second one pays

Two multi-source populations that differ in how far apart the sources are. Splitting one instrument's bands (EuroSAT-MS: Sentinel-2 visible against non-visible) is complementary at every fraction, +0.45 to +2.96 over the better single source. Pairing two satellites (So2Sat LCZ42: Sentinel-1 radar with Sentinel-2 optical) never pays, landing between −0.73 and ±0.00 against optical alone, though radar reaches 35–53% on its own against a 5.9% chance rate. Had we run only the multispectral population we would have reported that a second sensor stacks; the first genuinely cross-modality test contradicts it. The two populations also differ in source asymmetry, and the design cannot separate "too unequal" from "cross-modal"; the paper reports a contrast, not a predictor.

The benchmark

Scale3,077 classification configurations over 9,471 training runs, plus 216 segmentation and 36 detection runs
Datasets13, spanning natural images, satellite, texture, fine-grained, food and histopathology, plus multi-sensor Sentinel-1/2 pairs
Backbones9 across 5 families: ResNet-18/34/50, ConvNeXt, MobileNetV3, Swin, ViT-tiny/S/B
Data scale150 to 1.28M images; 32 to 224 px; 2.5M to 86M parameters
ComparatorsSimCLR, SimSiam, DINO, masked reconstruction, ImageNet transfer, DeiT augmentation, learned teachers, each at a declared multiple of baseline training cost
ProtocolOne frozen recipe; fixed per-class subset indices shared by every run; numerically pinned filter banks; every table regenerated by command
What we disclose. Configuration selection used the test split on CIFAR-100, which we mark as a selection set whose absolute values carry a bias of unknown size; the chosen setting was then applied verbatim to twelve further datasets that played no part in selection. Comparator tuning parity is asymmetric by construction under cost normalization, so our self-supervised numbers are lower bounds, and we measured how far below by re-running them at four times their budget. Two accuracy claims of ours did not survive that test and were withdrawn, and so was the claim that the fusion outcome is predictable in advance, after its prospective test called one pair of nine.

Acknowledgments

This work was partially funded by the EU project FoodWISE, 2021-SGR-01094 (AGAUR), Icrea Academia'2022 (Generalitat de Catalunya), and Grants PID2025-173459NB-C21 (BRIDGE-AI) and AIA2025-163919-C51 (EXPLORA), funded by MICIU/AEI, by FEDER (UE), and by European Union NextGenerationEU/PRTR. A. AlMughrabi acknowledges the support of FPI Becas, MICINN, Spain. The authors thankfully acknowledge the RES resources provided by the Barcelona Supercomputing Center on MareNostrum5 for IM-2025-3-0008.

Universitat de Barcelona Technical University of Munich Universitat Pompeu Fabra Barcelona Supercomputing Center

Citation

@article{almughrabi2026momentaux, title = {When does fusing hand-crafted knowledge with learned representations pay? A cost-normalized benchmark of stacking, substitution and interference}, author = {AlMughrabi, Ahmad and Clop, Albert and Busam, Benjamin and Marques, Ricardo and Radeva, Petia}, journal = {Under review}, year = {2026} }
